| Number | Type | Part No. | Specification |
| 1 | BUTTON SECURITY BARREL NUT | ABARREL0830RES | M4 X 10 PIN TX20 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| 2 | BUTTON SECURITY BARREL NUT | ABARREL0510RES |  M5 X 10 PIN TX25 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| 3 | BUTTON SECURITY BARREL NUT | ABARREL0612RES | M6 X 12 PIN TX30 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| 4 | BUTTON SECURITY BARREL NUT | ABARREL0625RES | M6 X 25 PIN TX30 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| 5 | BUTTON SECURITY BARREL NUT | ABARREL0816RES | M8 X 16 PIN TX40 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| 6 | BUTTON SECURITY BARREL NUT | ABARREL0830RES | M8 X 30 PIN TX40 BUTTON SECURITY BARREL NUT A2 STAINLESS STEEL |
| Parameter | |||||||

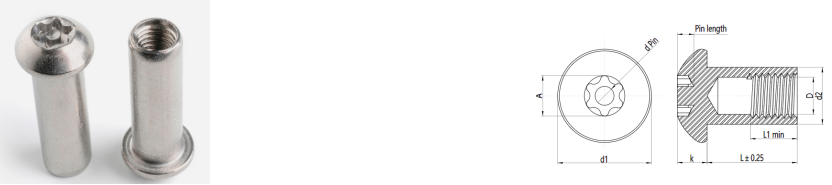

| Diameter (d) | Pitch | d1 | k (max) | L | L1 | d2 | Drive |
| M4 X 10 | 0.7 | 9.40-9.00 | 2.75 | 10 | 6 | 5.30-5.20 | Pin+T20 |
| M5 X 10 | 0.8 | 10.40-10.00 | 3.30 | 10 | 6 | 6.35-6.20 | Pin+T25 |
| M6 X 12 | 1 | 12.00-11.50 | 4.40 | 12 | 9 | 8.00-7.80 | Pin+T30 |
| M6 X 25 | 1 | 12.00-11.50 | 4.40 | 25 | 20 | 8.00-7.80 | Pin+T30 |
| M8 X 16 | 1.25 | 14.80-14.30 | 5.00 | 16 | 12 | 10.00-9.80 | Pin+T40 |
| M8 X 30 | 1.25 | 14.80-14.30 | 5.00 | 30 | 25 | 10.00-9.80 | Pin+T40 |
| M10 X 20 | 1.5 | 18.70-18.00 | 5.8 | 20 | 14 | 12.50-12.35 | Pin+T45 |
