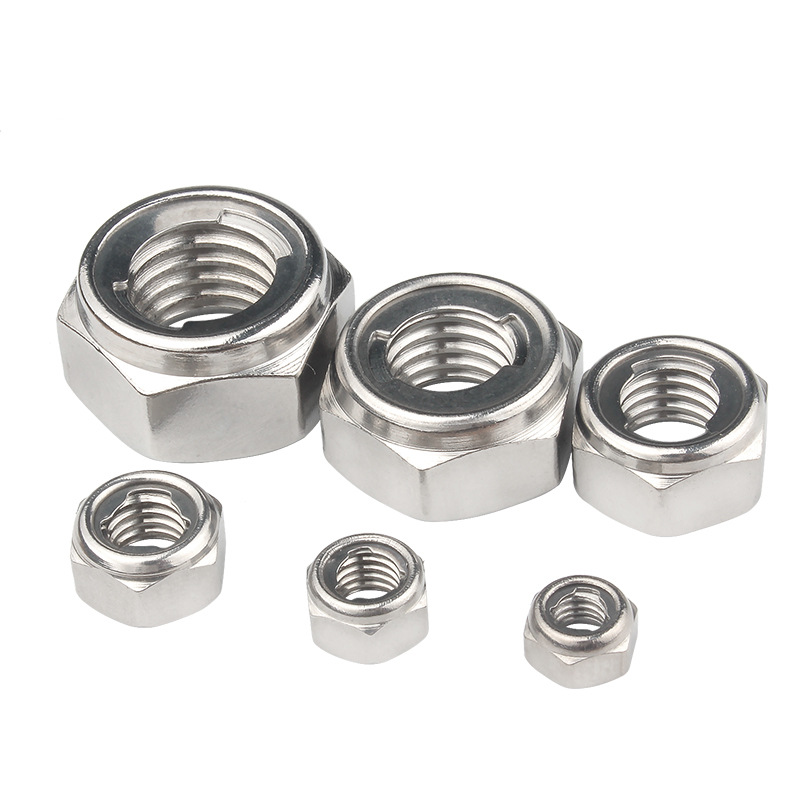

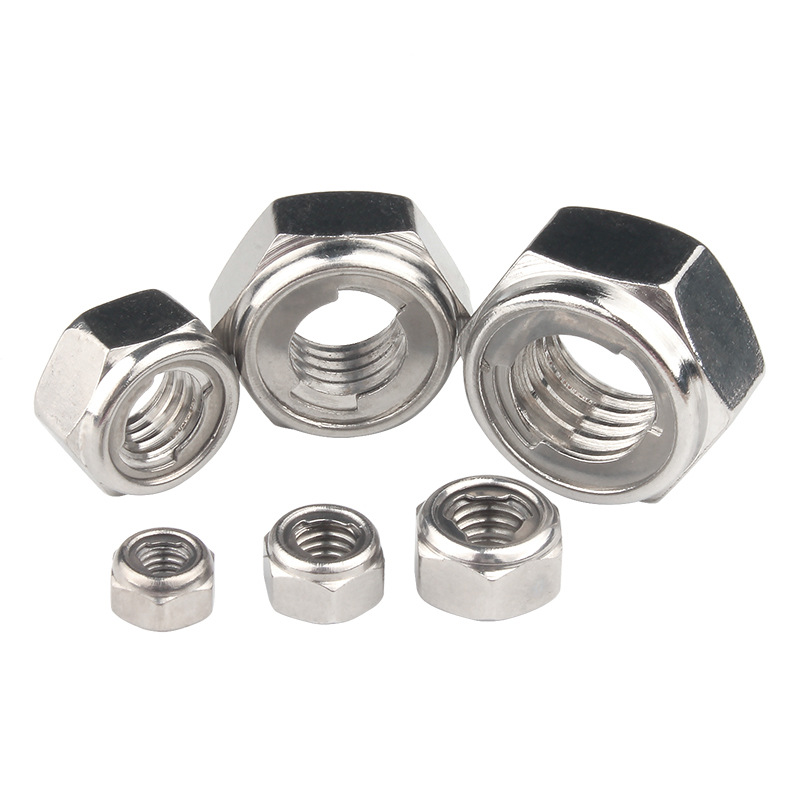

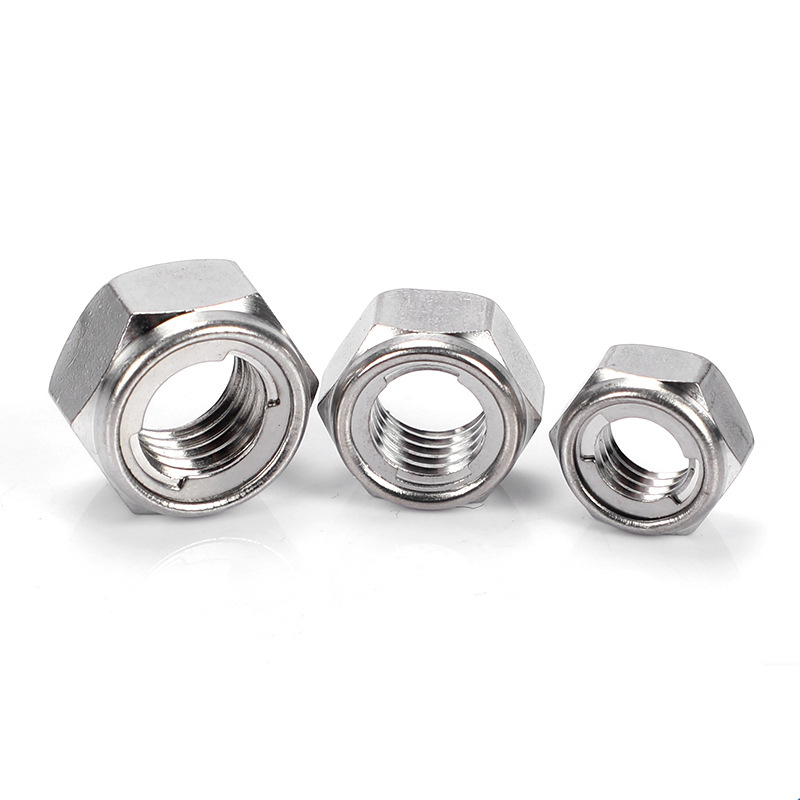

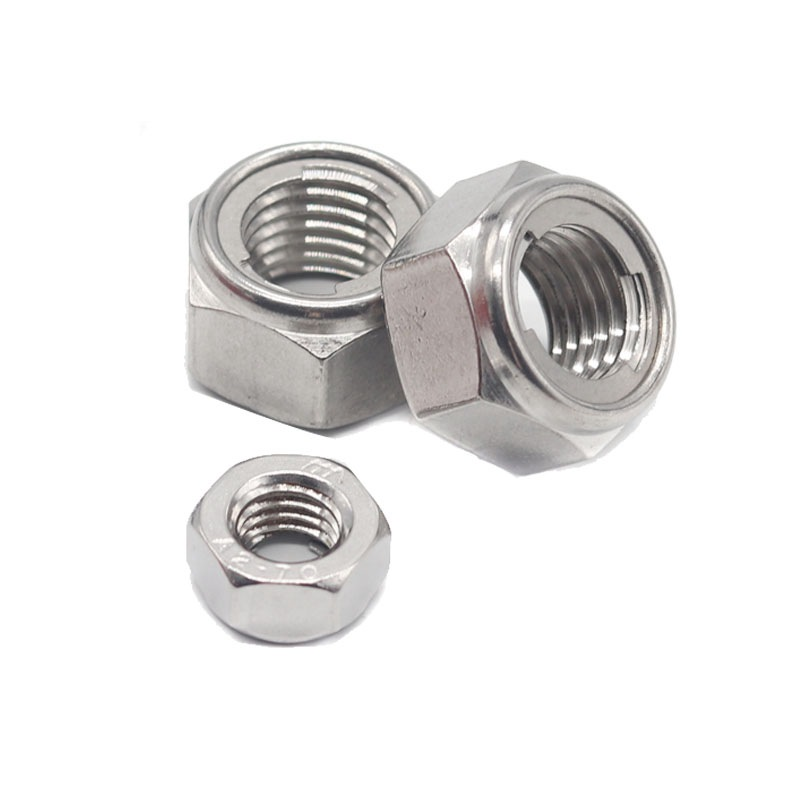

| Number | Type | Part No. | Specification |
| 1 | PHILIDAS TURRET NUTS | APHILT03 | M3 PHILIDAS TURRET NUT (3MCP/2S00) A2-70 STAINLESS STEEL |
| 2 | PHILIDAS TURRET NUTS | APHILT04 | M4 PHILIDAS TURRET NUT (4MCP/2S00) A2-70 STAINLESS STEEL |
| 3 | PHILIDAS TURRET NUTS | APHILT05 | M5 PHILIDAS TURRET NUT (5MCP/2S00) A2-70 STAINLESS STEEL |
| 4 | PHILIDAS TURRET NUTS | APHILT06 | M6 PHILIDAS TURRET NUT (6MCP/2S00) A2-70 STAINLESS STEEL |
| 5 | PHILIDAS TURRET NUTS | APHILT08 | M8 PHILIDAS TURRET NUT (8MCP/2S00) A2-70 STAINLESS STEEL |
| 6 | PHILIDAS TURRET NUTS | APHILT10 | M10 PHILIDAS TURRET NUT (10MCP/2S00) A2-70 STAINLESS STEEL |
| 7 | PHILIDAS TURRET NUTS | APHILT12 | M12 PHILIDAS TURRET NUT (12MCP/2S00) A2-70 STAINLESS STEEL |
| 8 | PHILIDAS TURRET NUTS | APHILT16 | M16 PHILIDAS TURRET NUT (16MCP/2S00) A2-70 STAINLESS STEEL |
| 9 | PHILIDAS TURRET NUTS | APHILT20 | M20 PHILIDAS TURRET NUT (20MCP/2S00) A2-70 STAINLESS STEEL |
| 10 | PHILIDAS TURRET NUTS | APHILT24 | M24 PHILIDAS TURRET NUT (24MCP/2S00) A2-70 STAINLESS STEEL |
| 11 | PHILIDAS TURRET NUTS | APHILT30 | M30 PHILIDAS TURRET NUT (30MCP/2S00) A2-70 STAINLESS STEEL |
| Parameter | ||||||||

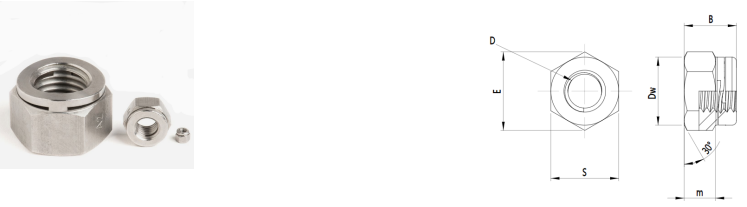

| Diameter (d) | Pitch | s | e (min) | m (nom) | b (nom) | Applied Torque (Nm) | Proof Load (N) | Clamp Load (N) |
| M3 | 0.5 | 5.50-5.32 | 6.01 | 2.5 | 4.8 | * | * | * |
| M4 | 0.7 | 7.00-6.78 | 7.66 | 3.3 | 5.6 | 2.3 | * | * |
| M5 | 0.8 | 8.00-7.78 | 8.79 | 3.9 | 6.8 | 4.7 | 9500 | 5000 |
| M6 | 1 | 10.00-9.78 | 11.05 | 5 | 8.5 | 7.95 | 13500 | 7072 |
| M8 | 1.25 | 13.00-12.73 | 14.38 | 6 | 10.5 | 19.3 | 24900 | 12880 |
| M10 | 1.5 | 17.00-16.73 | 18.9 | 7.6 | 13 | 38.25 | 39400 | 20400 |
| M12 | 1.75 | 19.00-18.67 | 21.1 | 8.5 | 15 | 66.5 | 59000 | 29680 |
| M16 | 2 | 24.00-23.67 | 26.75 | 12 | 19.5 | 166 | 109900 | 55280 |
| M20 | 2.5 | 30.00-29.16 | 32.95 | 15.5 | 24 | 324.5 | 176400 | 86400 |
| M24 | 3 | 36.00-35.00 | 39.55 | 19 | 29 | 558.5 | 254200 | 124000 |
