| Number | Type | Part No. | Specification |
| 1 | BUMAX ALL METAL SELF LOCKING FLANGED NUTS | BUMAXLOCK0688FL | M6 ALL METAL SELF LOCKING FLANGED NUT BUMAX 88 |
| 2 | BUMAX ALL METAL SELF LOCKING FLANGED NUTS | BUMAXLOCK0889FL | M8 ALL METAL SELF LOCKING FLANGED NUT BUMAX 88 |
| 3 | BUMAX ALL METAL SELF LOCKING FLANGED NUTS | BUMAXLOCK1090FL | M10 ALL METAL SELF LOCKING FLANGED NUT BUMAX 88 |
| 4 | BUMAX ALL METAL SELF LOCKING FLANGED NUTS | BUMAXLOCK1291FL | M12 ALL METAL SELF LOCKING FLANGED NUT BUMAX 88 |
| Parameter | |||||

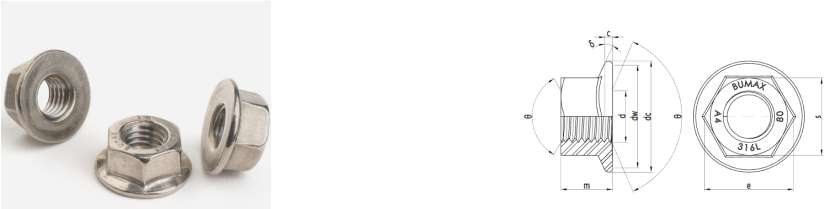

| Diameter | Pitch | s | dc (max) | m | c (min) |
| M6 | 1 | 10.00-9.78 | 14.2 | 6.00-5.70 | 1.1 |
| M8 | 1.25 | 13.00-12.73 | 17.9 | 8.00-7.64 | 1.2 |
| M10 | 1.5 | 15.00-14.73 | 21.8 | 10.00-9.64 | 1.5 |
| M12 | 1.75 | 18.00-17.73 | 26 | 12.00-11.57 | 1.8 |
