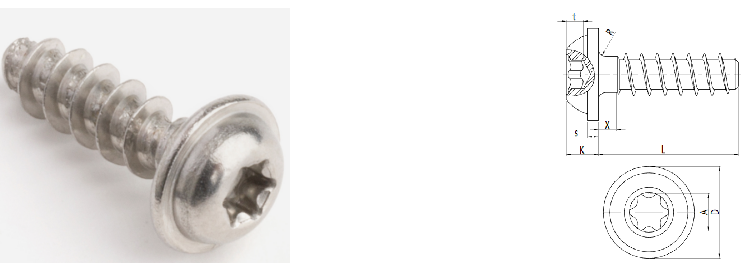

| Number | Type | Part No. | Specification |
| 1 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0308 | 3.0 X 8 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 2 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0310 | 3.0 X 10 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 3 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0312 | 3.0 X 12 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 4 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0314 | 3.0 X 14 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 5 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF03510 | 3.5 X 10 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 6 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF03512 | 3.5 X 12 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 7 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF03514 | 3.5 X 14 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 8 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF03516 | 3.5 X 16 TX10 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 9 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0410 | 4.0 X 10 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 10 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0412 | 4.0 X 12 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 11 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0414 | 4.0 X 14 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 12 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0416 | 4.0 X 16 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 13 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0512 | 5.0 X 12 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 14 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0514 | 5.0 X 14 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| 15 | HEXALOBULAR FLANGED POLYTECH 30 | APT30TXF0516 | 5.0 X 16 TX20 FLANGE POLYTECH 30 SCREW FOR PLASTICS A2 STAINLESS STEEL |
| Parameter | |||
| Diameter | d (max) | k (max) | Drive |
| 3 | 6 | 2.1 | T10 |
| 3.5 | 7 | 2.4 | T10 |
| 4 | 8 | 2.6 | T20 |
| 5 | 10 | 3.3 | T20 |
