| Number | Type | Part No. | Specification |
| 1 | ADJUSTING SHAFT COLLAR | A705004 | 4MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 2 | ADJUSTING SHAFT COLLAR | A705005 | 5MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 3 | ADJUSTING SHAFT COLLAR | A705006 | 6MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 4 | ADJUSTING SHAFT COLLAR | A705008 | 8MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 5 | ADJUSTING SHAFT COLLAR | A705009 | 9MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 6 | ADJUSTING SHAFT COLLAR | A705010 | 10MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 7 | ADJUSTING SHAFT COLLAR | A705011 | 11MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 8 | ADJUSTING SHAFT COLLAR | A705012 | 12MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 9 | ADJUSTING SHAFT COLLAR | A705013 | 13MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 10 | ADJUSTING SHAFT COLLAR | A705014 | 14MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 11 | ADJUSTING SHAFT COLLAR | A705015 | 15MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 12 | ADJUSTING SHAFT COLLAR | A705016 | 16MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 13 | ADJUSTING SHAFT COLLAR | A705018 | 18MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 14 | ADJUSTING SHAFT COLLAR | A705020 | 20MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 15 | ADJUSTING SHAFT COLLAR | A705022 | 22MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 16 | ADJUSTING SHAFT COLLAR | A705024 | 24MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 17 | ADJUSTING SHAFT COLLAR | A705025 | 25MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 18 | ADJUSTING SHAFT COLLAR | A705026 | 26MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 19 | ADJUSTING SHAFT COLLAR | A705030 | 30MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 20 | ADJUSTING SHAFT COLLAR | A705032 | 32MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 21 | ADJUSTING SHAFT COLLAR | A705035 | 35MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 22 | ADJUSTING SHAFT COLLAR | A705036 | 36MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 23 | ADJUSTING SHAFT COLLAR | A705038 | 38MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 24 | ADJUSTING SHAFT COLLAR | A705040 | 40MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 25 | ADJUSTING SHAFT COLLAR | A705045 | 45MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 26 | ADJUSTING SHAFT COLLAR | A705050 | 50MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 27 | ADJUSTING SHAFT COLLAR | A705055 | 55MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 28 | ADJUSTING SHAFT COLLAR | A705060 | 60MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 29 | ADJUSTING SHAFT COLLAR | A705065 | 65MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 30 | ADJUSTING SHAFT COLLAR | A705070 | 70MM ADJUSTING SHAFT RING DIN 705A c/w DIN 914 SETSCREW A2 STAINLESS STEEL |
| 31 | ADJUSTING SHAFT COLLAR | A705075 | 75MM ADJUSTING SHAFT RING DIN 705A c/w 2 x DIN 914 SETSCREW A2 STAINLESS STEEL |
| 32 | ADJUSTING SHAFT COLLAR | A705080 | 80MM ADJUSTING SHAFT RING DIN 705A c/w 2 x DIN 914 SETSCREW A2 STAINLESS STEEL |
| 33 | ADJUSTING SHAFT COLLAR | A705085 | 85MM ADJUSTING SHAFT RING DIN 705A c/w 2 x DIN 914 SETSCREW A2 STAINLESS STEEL |
| 34 | ADJUSTING SHAFT COLLAR | A705090 | 90MM ADJUSTING SHAFT RING DIN 705A c/w 2 x DIN 914 SETSCREW A2 STAINLESS STEEL |

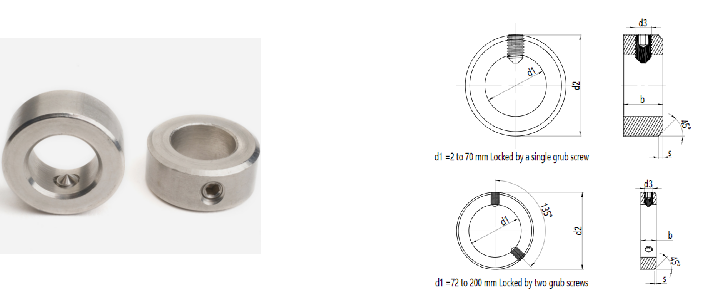

| Parameter | |||||||||
| Diameter | d1 | b | d2 | d3 | d4 | a | DIN 914/553 | DIN 1471 | DIN 1 |
| 4 | 4.018-4.000 | 5 | 8 | M2.5 | 1 | 0.4 | / | * | 1.0 X 10 |
| 5 | 5.018-5.000 | 6 | 10 | M3 | 1.5 | 0.4 | M3 X 4 | 1.5 X 10 | 1.5 X 12 |
| 6 | 6.018-6.000 | 8 | 12 | M4 | 1.5 | 0.4 | M4 X 5 | 1.5 X 12 | 1.5 X 14 |
| 7 | 7.022-7.000 | 8 | 12 | M4 | 1.5 | 0.4 | M4 X 5 | 1.5 X 12 | 1.5 X 14 |
| 8 | 8.022-8.000 | 8 | 16 | M4 | 2 | 1 | M4 X 6 | 2.0 X 16 | 2.0 X 20 |
| 9 | 9.022-9.000 | 8 | 16 | M5 | 3 | 1 | M5 X 8 | 3.0 X 18 | 3.0 X 22 |
| 10 | 10.022-10.000 | 10 | 20 | M5 | 3 | 1 | M5 X 8 | 3.0 X 20 | 3.0 X 24 |
| 11 | 11.027-11.000 | 10 | 20 | M5 | 3 | 1 | M5 X 8 | 3.0 X 20 | 3.0 X 24 |
| 12 | 12.027-12.000 | 12 | 22 | M6 | 4 | 1 | M6 X 8 | 4.0 X 22 | 4.0 X 26 |
| 14 | 14.027-14.000 | 12 | 25 | M6 | 4 | 1 | M6 X 8 | 4.0 X 25 | 4.0 x 30 |
| 15 | 15.027-15.000 | 12 | 25 | M6 | 4 | 1 | M6 X 8 | 4.0 X 25 | 4.0 X 30 |
| 16 | 16.027-16.000 | 12 | 28 | M6 | 4 | 1.6 | M6 X 8 | 4.0 X 28 | 4.0 X 32 |
| 18 | 18.027-18.000 | 14 | 32 | M6 | 5 | 1.6 | M6 X 8 | 5.0 X 32 | 5.0 X 36 |
| 20 | 20.033-20.000 | 14 | 32 | M6 | 5 | 1.6 | M6 X 8 | 5.0 X 32 | 5.0 X 36 |
| 22 | 22.033-22.000 | 14 | 36 | M6 | 5 | 1.6 | M6 X 10 | 5.0 X 36 | 5.0 X 40 |
| 24 | 24.033-24.000 | 16 | 40 | M8 | 6 | 1.6 | M8 X 10 | 6.0 X 40 | 6.0 X 45 |
| 25 | 25.033-25.000 | 16 | 40 | M8 | 6 | 1.6 | M8 X 10 | 6.0 X 40 | 6.0 X 45 |
| 26 | 26.033-26.000 | 16 | 40 | M8 | 6 | 1.6 | M8 X 10 | 6.0 X 40 | 6.0 X 45 |
| 28 | 28.033-28.000 | 16 | 45 | M8 | 6 | 1.6 | M8 X 12 | 6.0 X 45 | 6.0 X 50 |
| 30 | 30.033-30.000 | 16 | 45 | M8 | 6 | 1.6 | M8 X 12 | 6.0 X 45 | 6.0 X 50 |
| 32 | 32.039-32.000 | 16 | 50 | M8 | 8 | 1.6 | M8 X 12 | 8.0 X 50 | 8.0 X 55 |
| 34 | 34.039-34.000 | 16 | 50 | M8 | 8 | 1.6 | M8 X 12 | 8.0 X 50 | 8.0 X 55 |
| 35 | 35.039-35.000 | 16 | 56 | M8 | 8 | 1.6 | M8 X 12 | 8.0 X 55 | 8.0 X 60 |
| 36 | 36.039-36.000 | 16 | 56 | M8 | 8 | 1.6 | M8 X 12 | 8.0 X 55 | 8.0 X 60 |
| 38 | 38.039-38.000 | 16 | 56 | M8 | 8 | 1.6 | M8 X 12 | 8.0 X 55 | 8.0 X 60 |
| 40 | 40.039-40.000 | 18 | 63 | M10 | 8 | 1.6 | M10 X 16 | 8.0 X 60 | 8.0 X 70 |
| 45 | 45.039-45.000 | 18 | 70 | M10 | 8 | 1.6 | M10 X 16 | 8.0 X 70 | 8.0 X 80 |
| 50 | 50.039-50.000 | 18 | 80 | M10 | 10 | 1.6 | M10 X 16 | 10 X 80 | 10 X 90 |
| 55 | 55.046-55.000 | 18 | 80 | M10 | 10 | 1.6 | M10 X 16 | 10 X 80 | 10 X 90 |
| 60 | 60.046-60.000 | 20 | 90 | M10 | 10 | 1.6 | M10 X 20 | 10 X 90 | 10 X 100 |
| 65 | 65.046-65.000 | 20 | 100 | M10 | 10 | 1.6 | M10 X 20 | 10 X 100 | 10 X 110 |
| 70 | 70.046-70.000 | 20 | 100 | M10 | 10 | 1.6 | M10 X 20 | 10 X 100 | 10 X 110 |
| 75 | 75.046-75.000 | 22 | 110 | M12 | 10 | 2.5 | M12 X 20 | 10 X 110 | 10 X 120 |
| 80 | 80.046-80.000 | 22 | 110 | M12 | 10 | 2.5 | M12 X 20 | 10 X 110 | 10 X 120 |
| 85 | 85.054-85.000 | 22 | 125 | M12 | 10 | 2.5 | M12 X 20 | 13 X 125 | 13 X 140 |
| 90 | 90.054-90.000 | 22 | 125 | M12 | 10 | 2.5 | M12 X 20 | 13 X 125 | 13 X 140 |
